Product Introduction

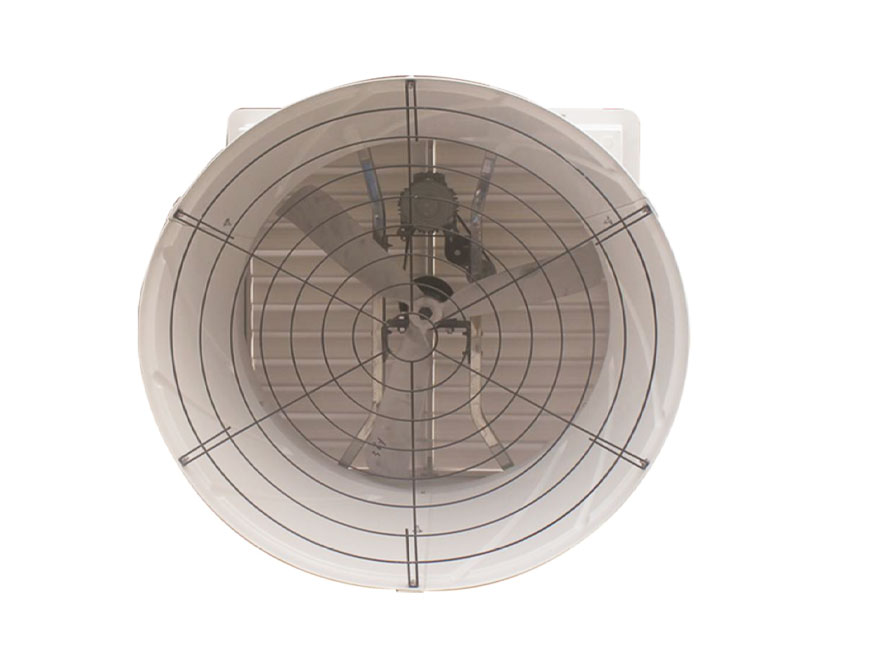

◆ This FRP fan is suitable for places where the temperature needs to be cooled, such as breeding farms with corrosive gases and other industrial and mining plants.
◆ The fiberglass shell is extremely strong and resistant to corrosion, deformation, and discoloration.
◆ The horn-shaped exhaust vent is highly impact resistant and improves performance by 10%.
◆ PG material fiber reinforced composite material is formed by injection molding of glass fiber and nylon under high pressure.
Characteristics
◆ In order to have high strength, strong toughness and light weight; this PG blade adopts the streamlined design of the propeller, large air volume; low maintenance cost.
◆ High-quality imported bearings to ensure smooth and efficient operation of fan blades.
◆ High quality and high efficiency motor.
Technical Parameter
| Model | Model | Propeller
Dia. (MM) | Blade | Rated Speed | Air Capacity | Rated Power | Voltage Frequency | Drive Mode | Complete Size | Complete Size |
| (R/min) | M/h/(CFM) @0″SP | Kw | L×H×W(mm) | L×H×W(mm) | ||||||
| HYB-1630 | 55 cun | 1397 | 3 | 710 | 57000 | 1.5 | 380V/220V | Direct | 1630*1630*1480 | 1540*1540 |
| HYB-1530 | 51 cun | 1290 | 3 | 710 | 48000 | 1.1 | 380V/220V | Direct | 1530*1530*1220 | 1460*1460 |
| HYB-1460 | 50 cun | 1250 | 3 | 710 | 44000 | 1.1 | 380V/220V | Direct | 1460*1460*1220 | 1400*1400 |
| HYB-1170 | 36 cun | 915 | 3 | 910 | 26000 | 0.75 | 380V/220V | Direct | 1170*1170*1200 | 1080*1080 |
| HYB-810 | 24 cun | 610 | 6 | 910 | 12000 | 0.37 | 380V/220V | Direct | 810*810*1000 | 740*740 |
| HYB-660 | 18 cun | 460 | 8 | 1400 | 7400 | 0.37 | 380V/220V | Direct | 660*660*780 | 580*580 |
