Product Introduction
1.Textile, printing and dyeing , plastics , steel , machinery, ceramics, chemical industry, metallurgy, glass, metal, leather and other industrial plants workshop;
2.Planting, electronics, footwear, printing and dyeing, clothing, printing, packaging, flld processing industry sites.
3. Hospitals hotels, stadiums, exhibition halls, schools, waiting rooms, supermarket , laundry room.
4.Kitchen markets, larae-scale entertainment center, underground parking, stations and other public places.
5.Greenhouse, flowers, poultry, livestock and other kinds of farms.

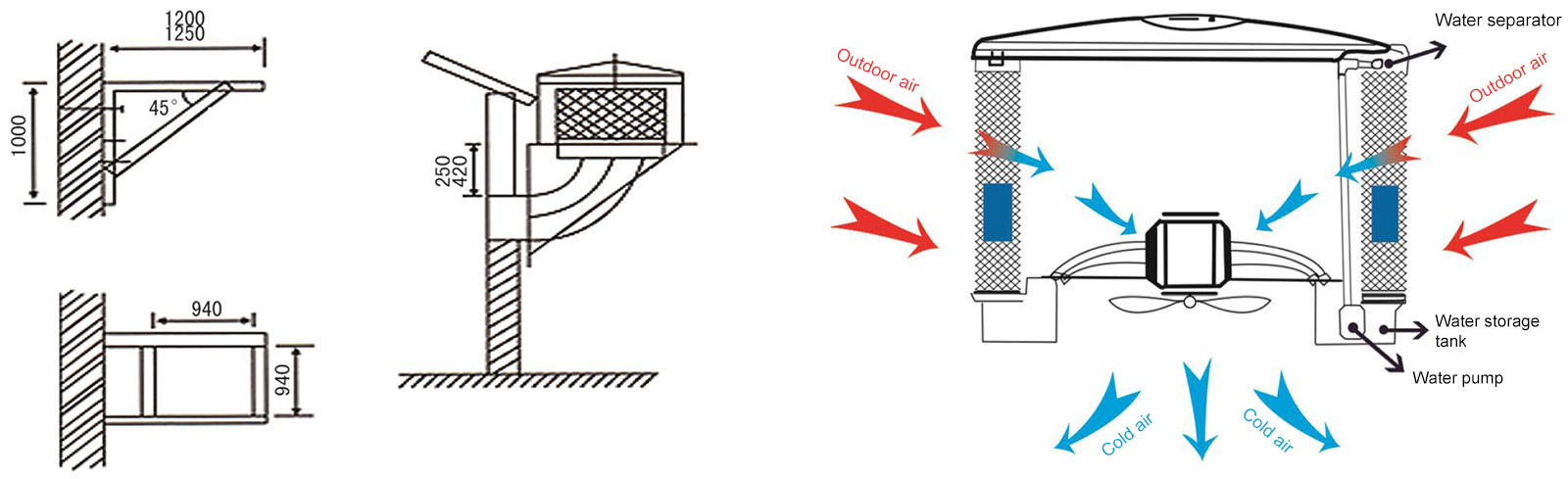

Installation diagram
Technical Parameter
Model | Power kw | Voltage v | Air volume m³/h | Applicable area ㎡ | External dimensions mm |
HY-1.1 | 1.1 | 380/220 | 18000 | 100-150 | 1100×1100×980 |
HY-1.5 | 1.5 | 380/220 | 20000 | 100-150 | 1100×1100×980 |
HY-2.2 | 2.2 | 380 | 25000 | 200-350 | 1140×1140×1150 |
HY-3.0 | 3 | 380 | 30000 | 200-350 | 1280×1280×1200 |
HY-4.0 | 4 | 380 | 40000 | 200-350 | 1400×1400×1400 |
